Step1: PRE-BENDING

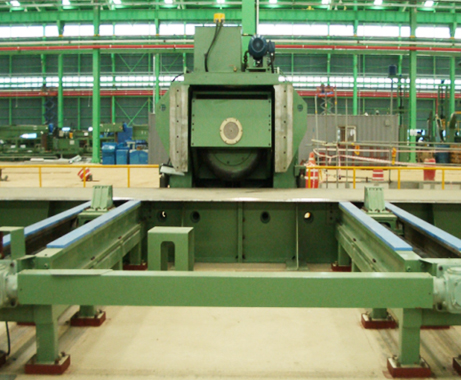

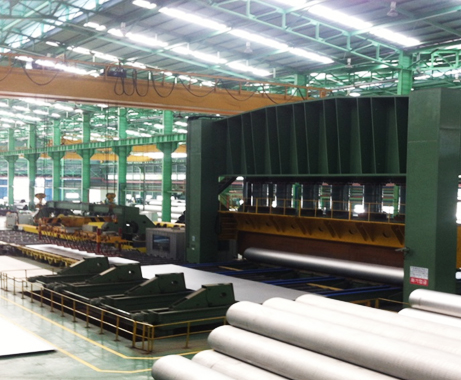

Edge Bending and Press Bending that is applied for the products with thickness greater than 40T Performed before the processingStep2: PRESS-BENDING
Carry out bending in the shape of J, C, O, using 7000 ton press2
3~4Stage
3~4Stage
Step3: POST-BENDING

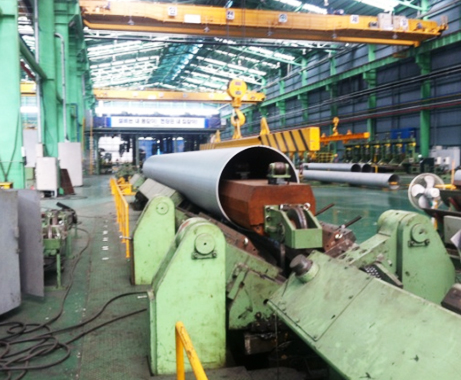

Edge Bending and Press Bending that is applied for the products with thickness less than, and equal to 40T Performed before the processingStep4: TACK WELDING
Tack welding process for regular welding after the completion of forming (Bending)3
5~6Stage
5~6Stage
Step5: EXTERNAL WELDING

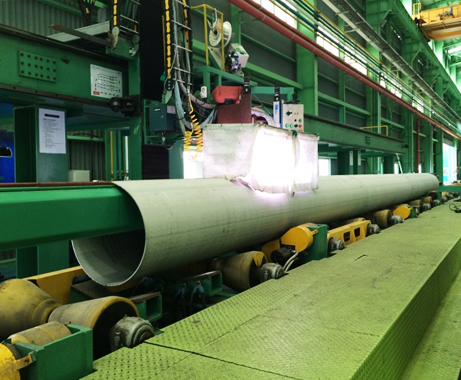

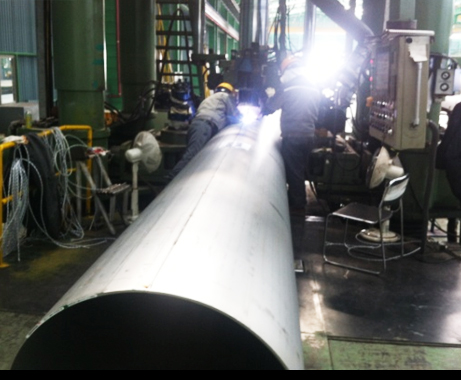

Exterior welding process of PAW and/or GTAW after the completion of tack weldingStep6: LONGITUDINAL SEAM MILING

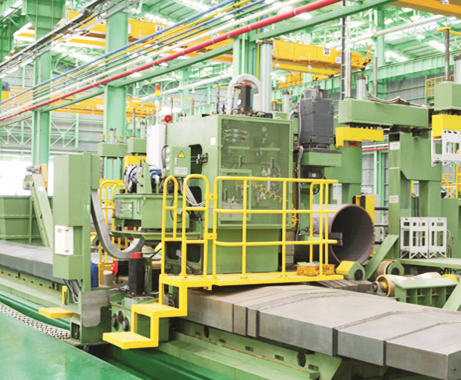

In case of edge forming Y-model, groove manufacturing process for exterior welding4
7~8Stage
7~8Stage

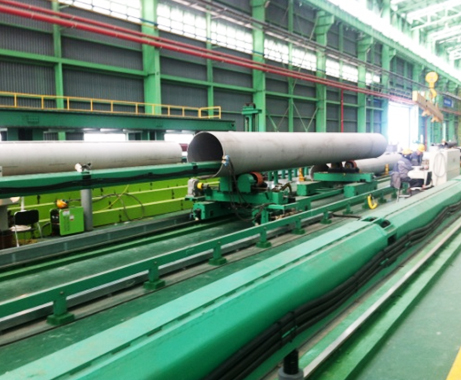

Step7: INTERNAL WELDING
GTAW internal welding process after the completion of external weldingStep8: RADIOGRAPHIC TEST

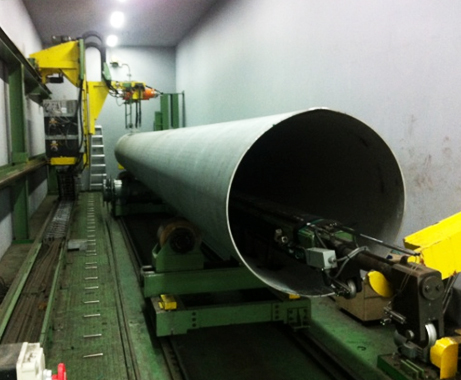

Automatic controlled RT system for checking the welding zone integrity5
9~10Stage
9~10Stage

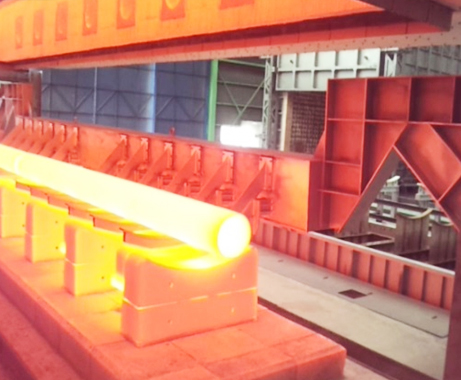

Step9: HEAT TREATMENT
Batch type heat treatment process for solution treatment of STS pipeStep10: SIZING

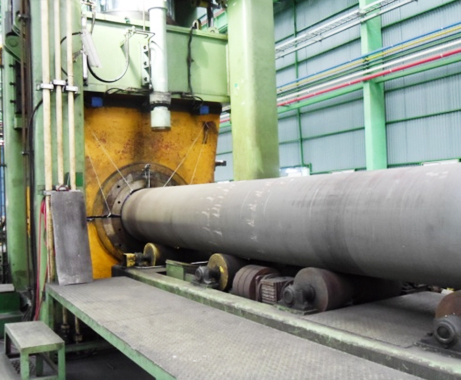

Sizing operation to guarantee the roundness and straightness of the product size6
11~12Stage
11~12Stage

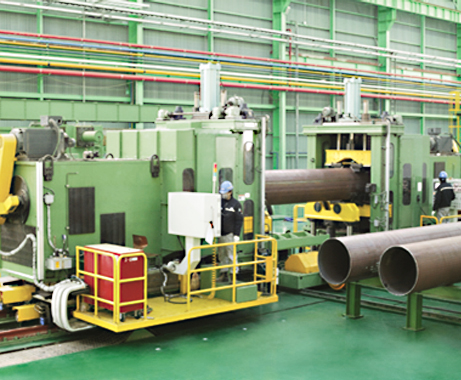

Step11: END FACING

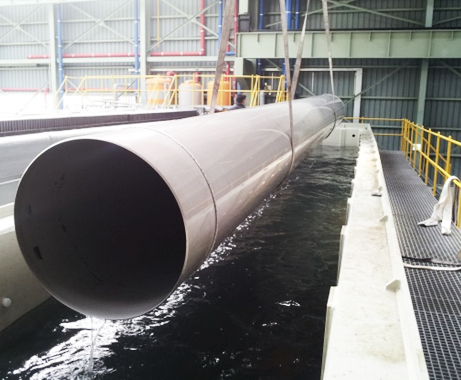

Process of bevel manufacturing both tips of tubes according to the product standard for field connection weldingStep12: PICKING
Cleaning the product surface and passivation treatment process using acid solution7
